YL Series Single-phase Heavy-duty Cast Iron Housing Induction Motor with Dual Capacitors

With running and staring dual capacitors
Frame size:H71 - H132
Rated power range: 2pole 0.37kw - 3.0kw,
4pole 0.25kw - 7.5kw
Housing material : aluminum (plastic terminal box)
Protection Class: IP54/55
Insulation Class: ClassB/F
Cooling Method: IC411
Availability:
Quantity:
Inquire Add to Basket

  • YL series

  • iNERGY

  • 8501

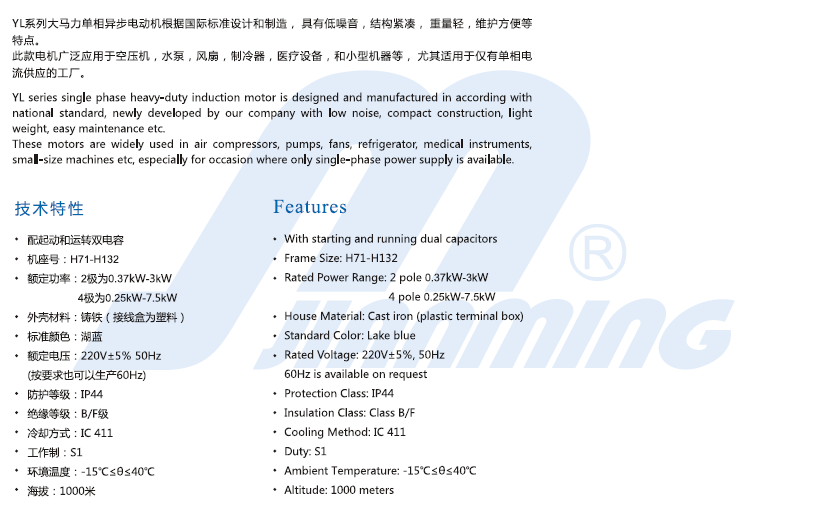

yl general info

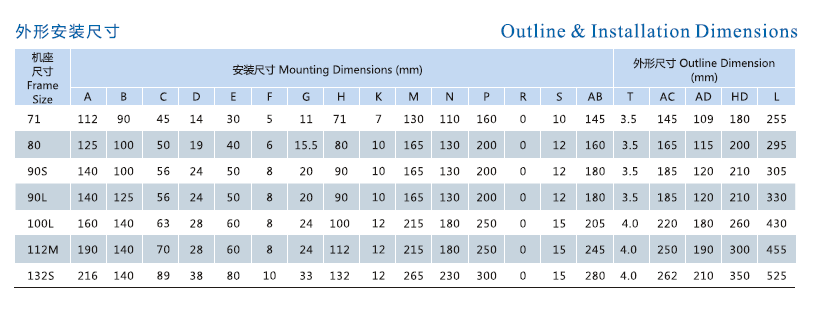

yl dimension

yl dimension 1

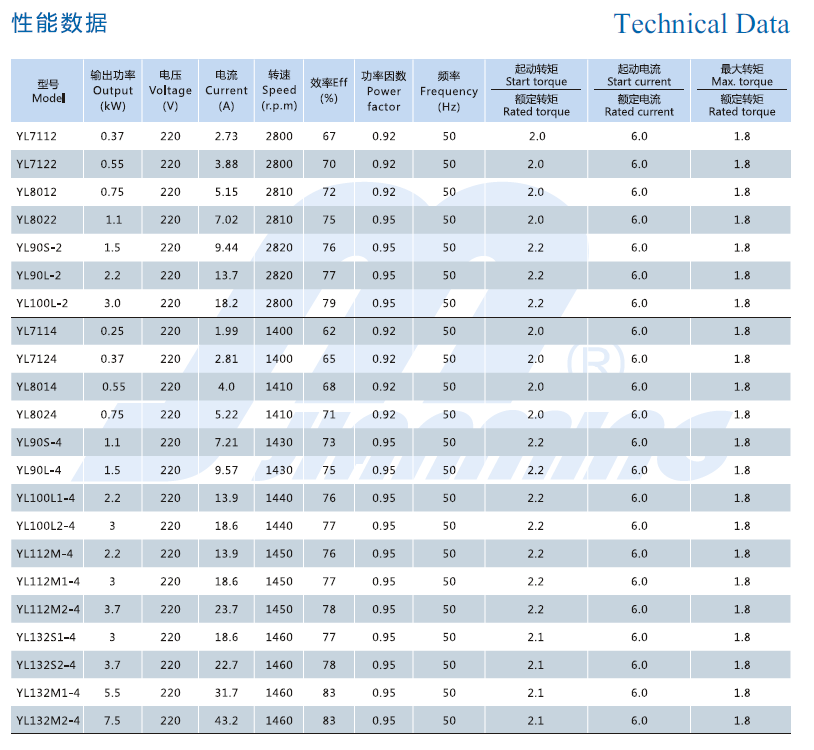

yl technical data
