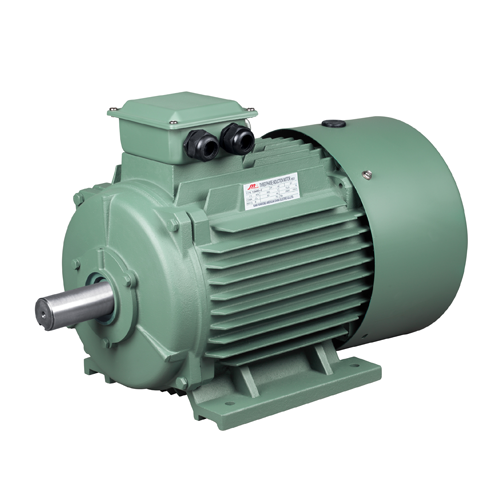

YJD2 Series 3-Phase Induction Motors cast iron case (IE1)

Frame size Range: H80-H355
Rate Power Range: 0.55KW - 315KW(50hz)
Housing Material: cast iron
Standard Mounting construction: IEC60034-7
Protect Enclosed Class: IP55(IEC60034-5)
Cooling Method: IC411 (IEC60034-6)
Availability:
Quantity:
Inquire Add to Basket

  • YJD2 IE1

  • iNERGY

  • 3501

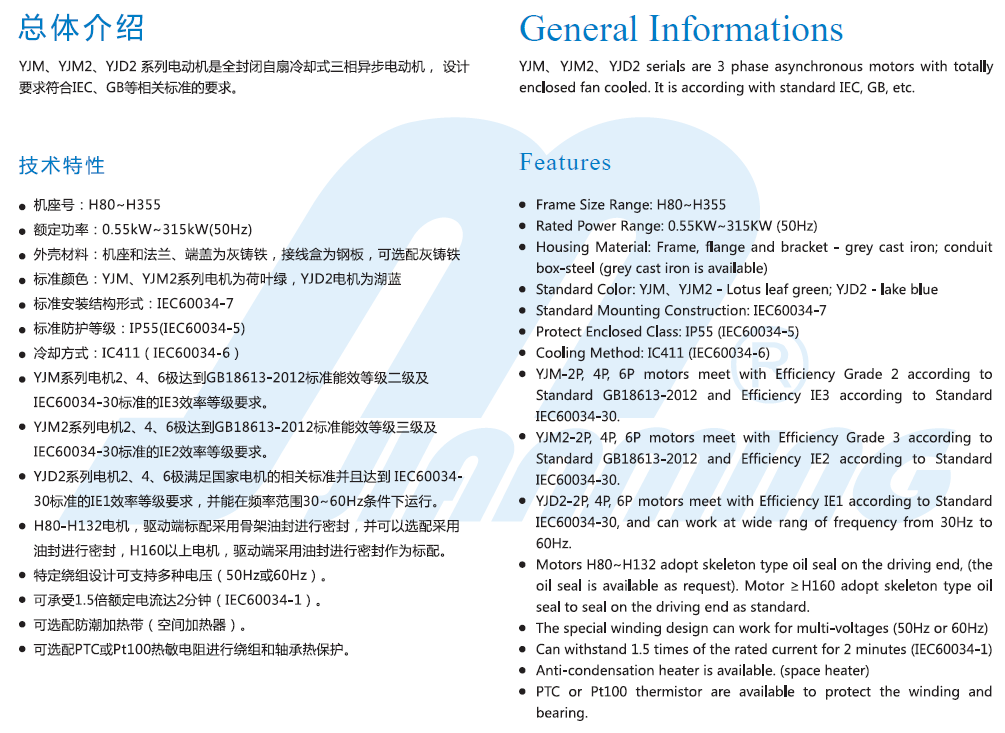

iec-1

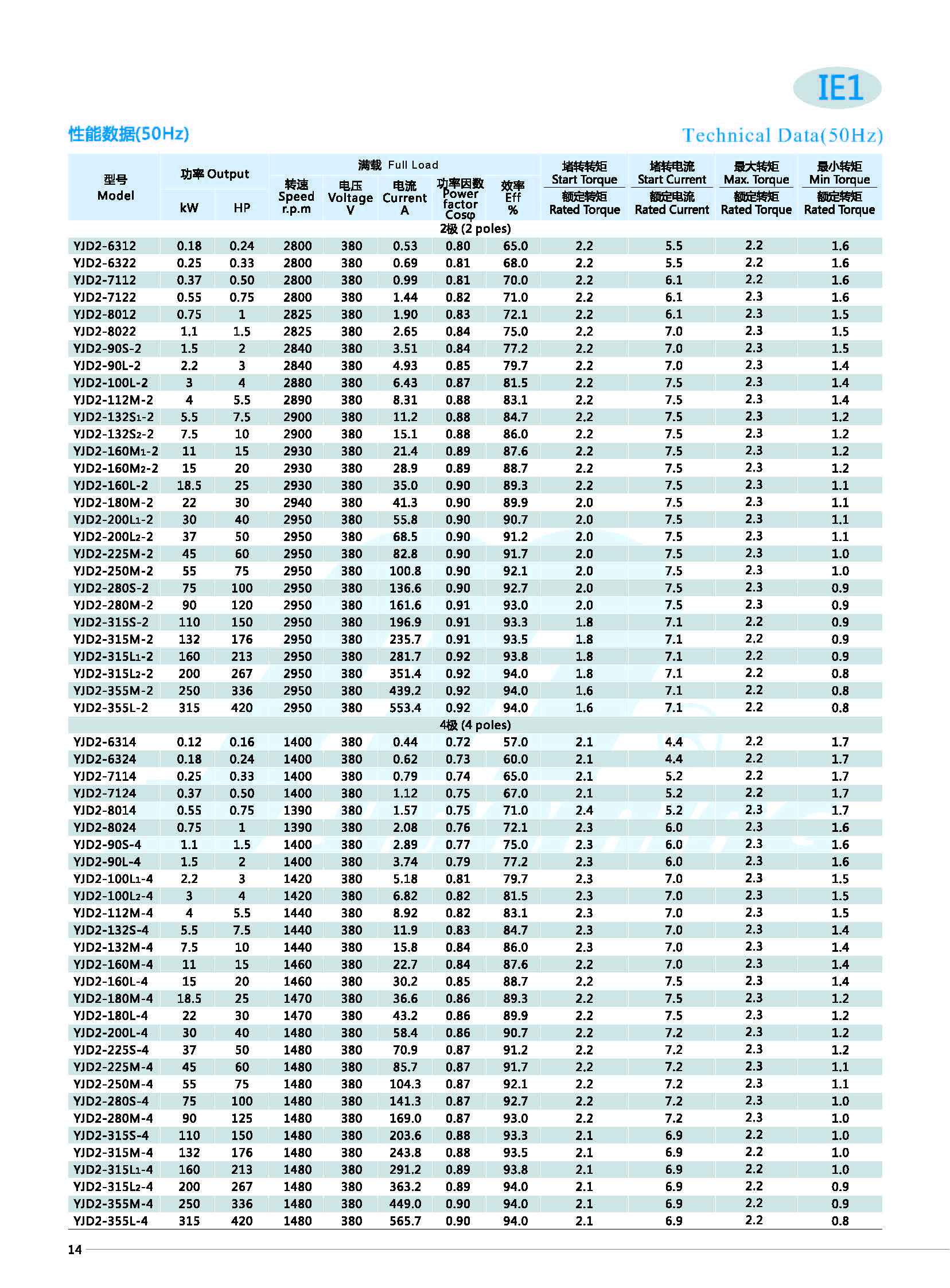

YJM IE1_页面_1

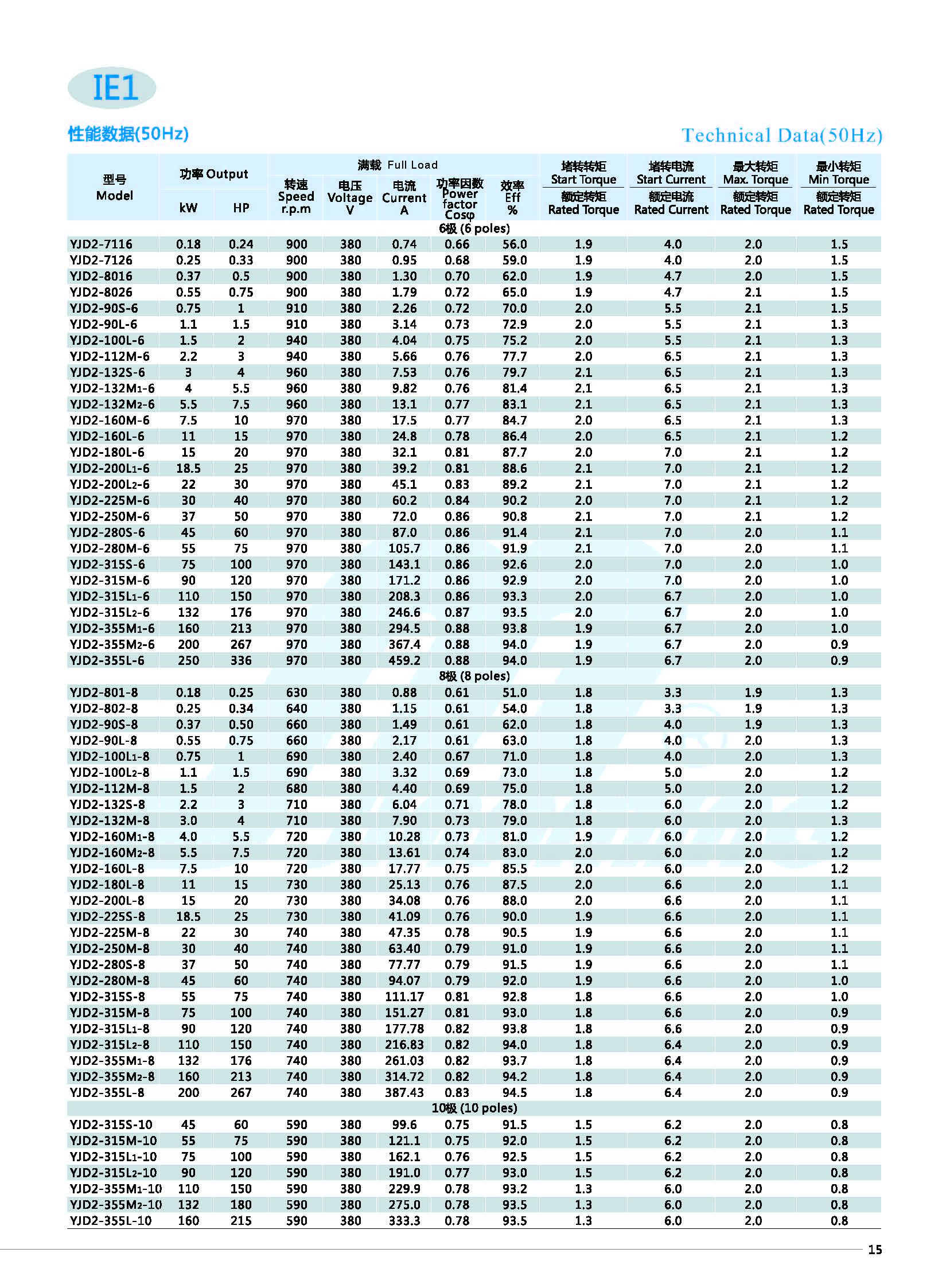

YJM IE1_页面_2

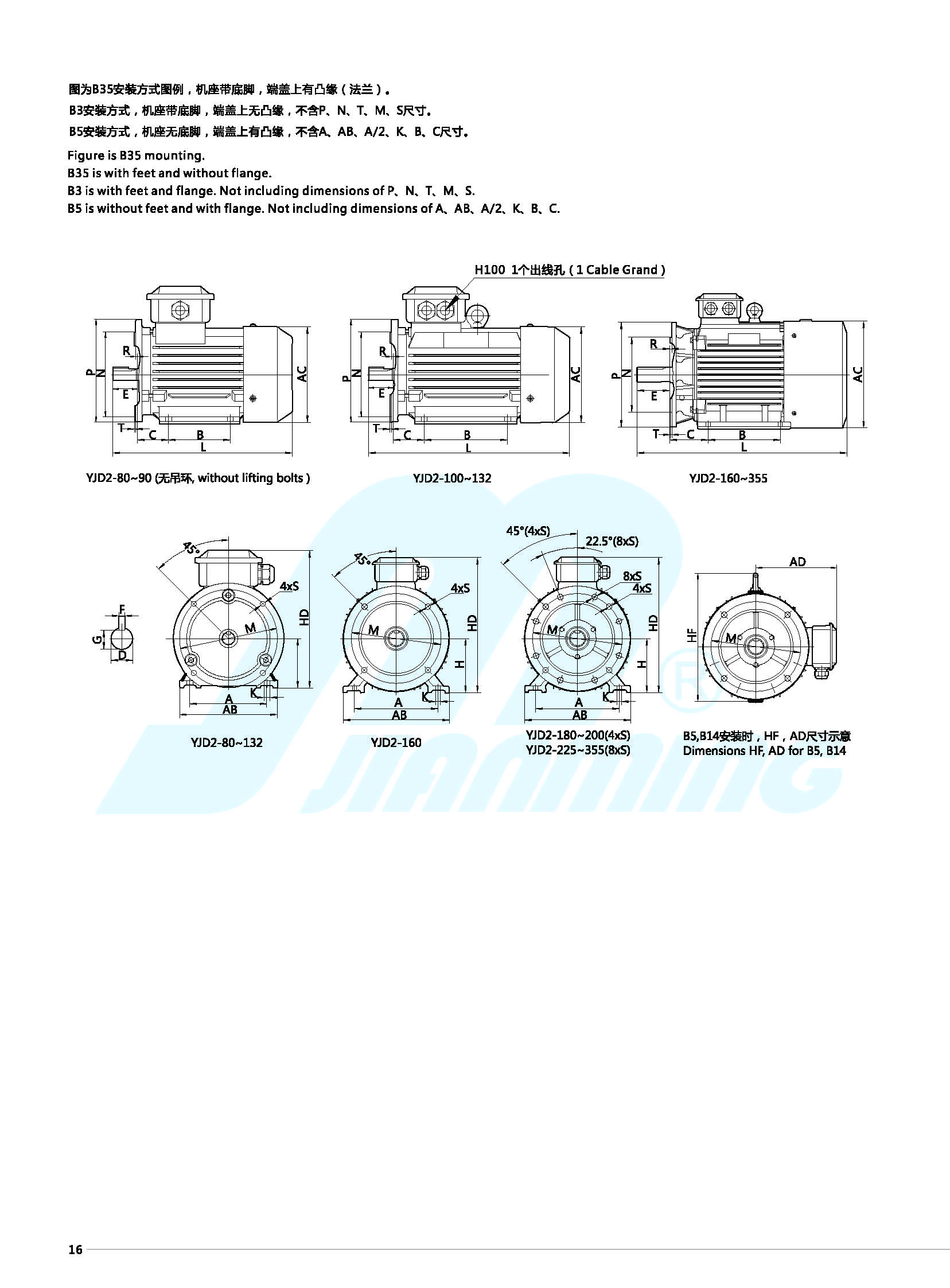

YJM IE1_页面_3

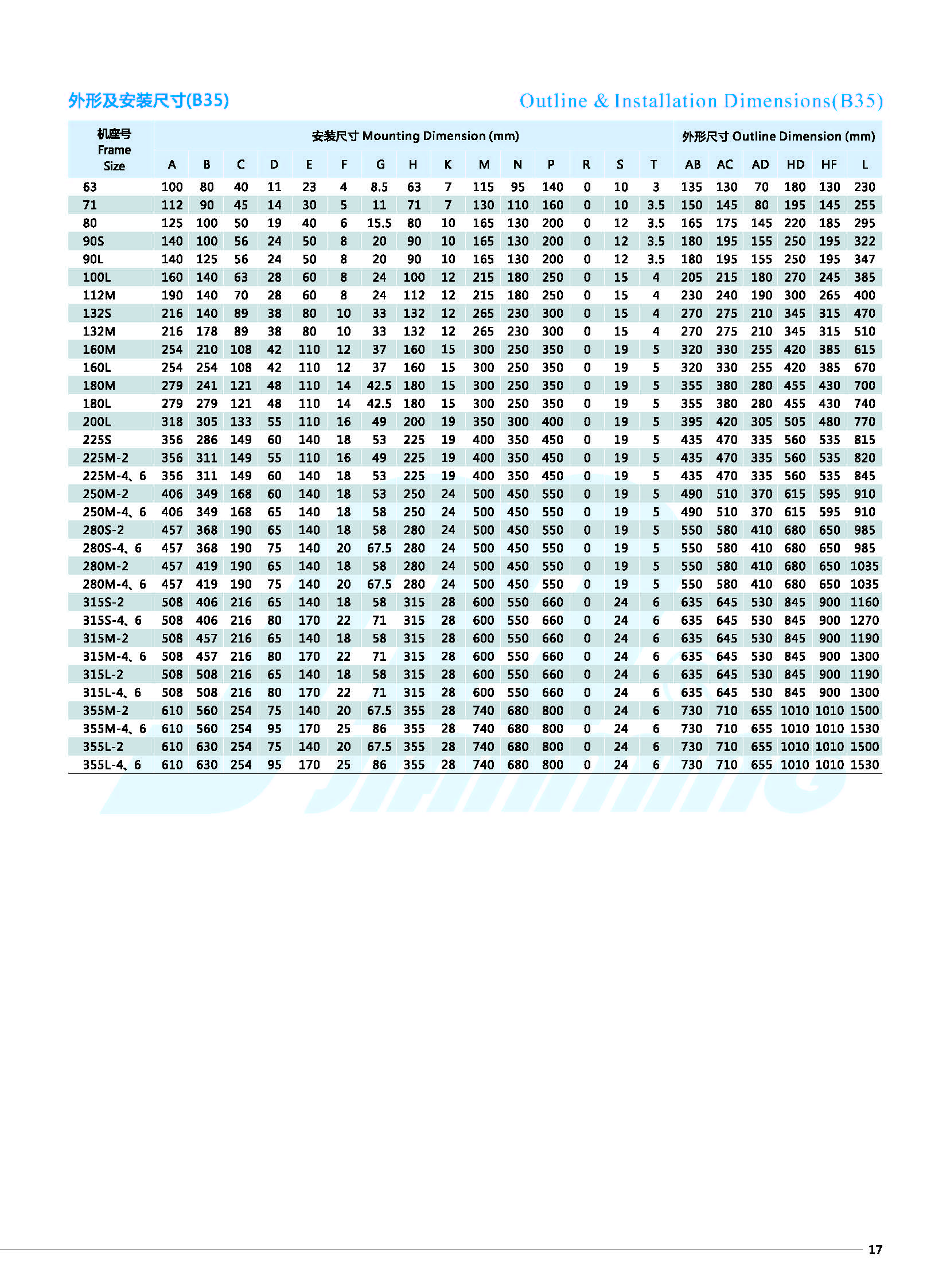

YJM IE1_页面_4
