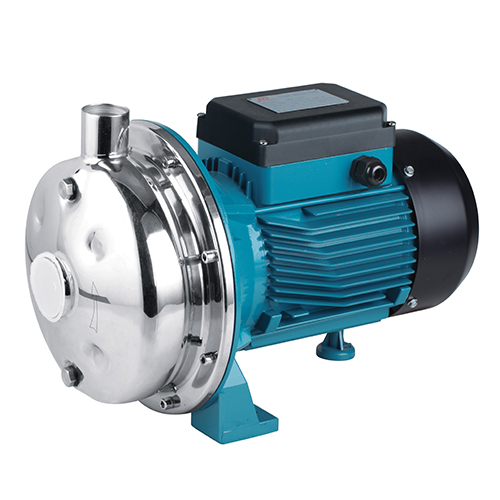

YDSM-ST
INERGY
84137099
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Continuous duty
l Ph: 6.5 to 8.5
PUMP
l Pump Body: Stainless steel
l Impeller:Stainless steel
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
l Front bracket: Aluminum
MOTOR
l Single Phase l Heavy Duty Continuous Work
l Motor Housing: Aluminum l Shaft: AISI304
l Insulation: Class B / Class F l Protection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l Stainless steel pump body and impeller
l High efficiency
l Compact structure
l Good for water purify system,food industry and chemical
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Continuous duty
l Ph: 6.5 to 8.5
PUMP
l Pump Body: Stainless steel
l Impeller:Stainless steel
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
l Front bracket: Aluminum
MOTOR
l Single Phase l Heavy Duty Continuous Work
l Motor Housing: Aluminum l Shaft: AISI304
l Insulation: Class B / Class F l Protection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l Stainless steel pump body and impeller
l High efficiency
l Compact structure
l Good for water purify system,food industry and chemical
