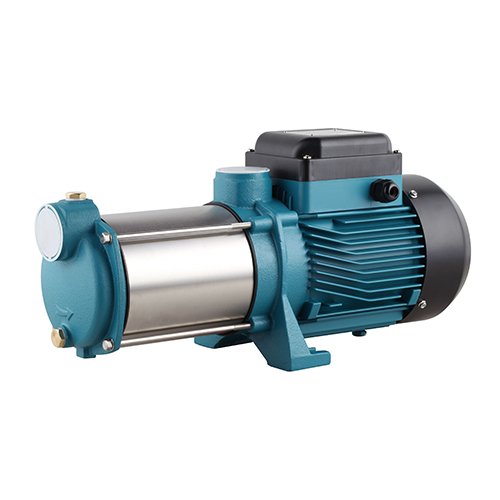

YDMH
INERGY
84137099
OPERATING CONDITIONS
l Thin, clean, non-flammable and non-explosive liquid
containing no solid granules and fiber.
l Liquid temperature:
Normal temperature type: -15℃~+70℃
Hot temperature type: -15℃~120℃
l Ambient temp up to 40℃
l Altitude:up to 1,000m.
MATERIALS
l Pump body in AISI304 stainless steel.
l Motor shaft in AISI420 stainless steel. Diffusers in techno-polymer.
l Impeller in AISI304 or Techno-polymer. Suction and discharge mountings in cast iron.
l Mechanical seal in graphite and ceramic. Gaskets in EPDM and NBR.
l Motor casing aluminum.

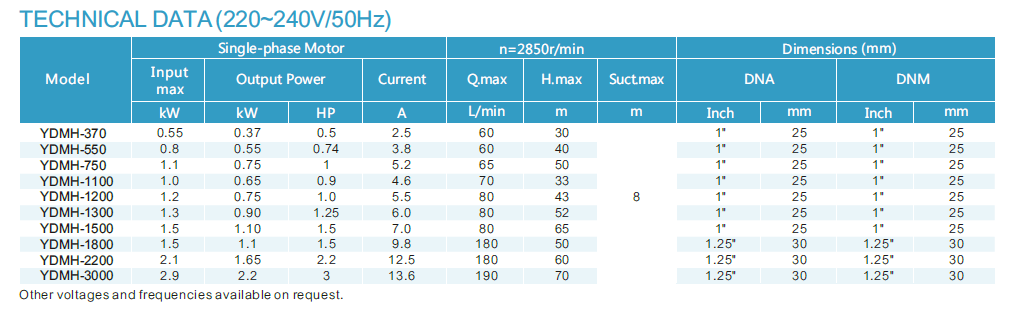

MOTOR
l Full-enclosed air-blast
l Two-pople standard motor
l Protection class: Ip55
l Insulation class: F
l Standard voltage,50Hz
1*220-230/240v
3*220-240/346-380v
3*220-240/380-415v
3*380-415v
