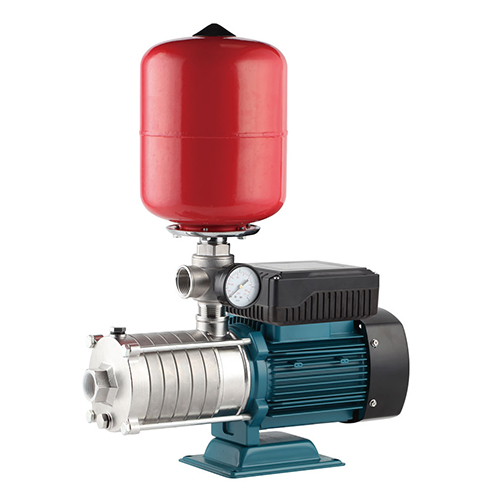

YDH
INERGY
84137099
OPERATING CONDITIONS
l Liquid temperature :Normal temperatuer -15℃to+70℃
hot water-15℃to+105℃
l Maximum ambient temperature :+ 40℃
l Maximum operating pressure:8bar
l Maximum inlet pressure is limited by maxinmum operating pressure
PUMP
l Different impeller material configuration with short pump body
l Compacted design,easy installation and maintenance
MOTOR
l Motor is fully enclosed, air-cooled two-pole motor.
l Protection class: Ip55
l Insulation class: F
l Standard voltage: 50HZ: 1~220-240V
3~220-240V / 380-415V
l Single-phase motor maximum power 2.2kW.
OPERATING CONDITIONS
l Liquid temperature :Normal temperatuer -15℃to+70℃
hot water-15℃to+105℃
l Maximum ambient temperature :+ 40℃
l Maximum operating pressure:8bar
l Maximum inlet pressure is limited by maxinmum operating pressure
PUMP
l Different impeller material configuration with short pump body
l Compacted design,easy installation and maintenance
MOTOR
l Motor is fully enclosed, air-cooled two-pole motor.
l Protection class: Ip55
l Insulation class: F
l Standard voltage: 50HZ: 1~220-240V
3~220-240V / 380-415V
l Single-phase motor maximum power 2.2kW.
