| Quantity: | |
|---|---|

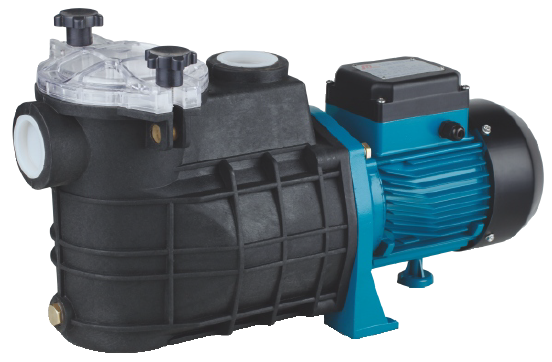

YDFP
INERGY
84137099
OPERATING CONDITIONS
l Ambient temperature type: ≤40℃
l Max working pressure: 0.3MPa
l Liquid temperature range: 5-50℃
PUMP
l Pump Body: Techno-polymer
l Impeller: Techno-polymer
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Single Phase
l Heavy Duty Continuous Work
l Motor Housing: Aluminum / Cast Iron
l Shaft: Carbon Steel / Stainless Steel
l Insulation: Class B / Class F
l Protection: IP44 / IP54
l Cooling: External Ventilation
OPERATING CONDITIONS
l Ambient temperature type: ≤40℃
l Max working pressure: 0.3MPa
l Liquid temperature range: 5-50℃
PUMP
l Pump Body: Techno-polymer
l Impeller: Techno-polymer
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Single Phase
l Heavy Duty Continuous Work
l Motor Housing: Aluminum / Cast Iron
l Shaft: Carbon Steel / Stainless Steel
l Insulation: Class B / Class F
l Protection: IP44 / IP54
l Cooling: External Ventilation
