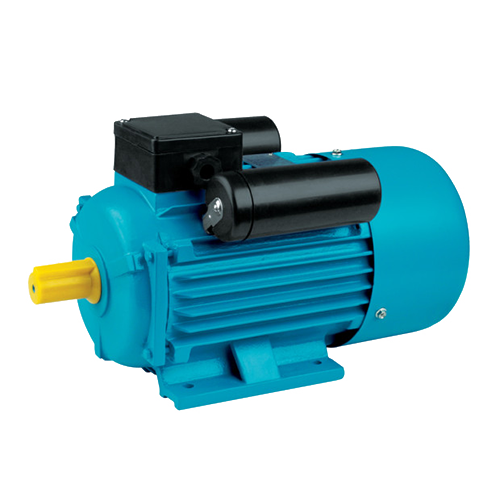

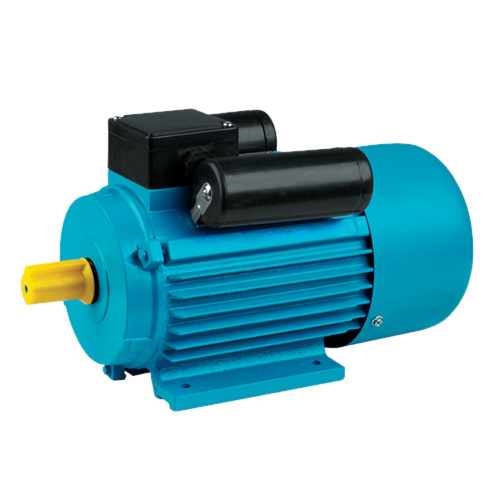

YC/YCL Series Single-phase Heavy-duty Cast Iron Housing Induction Motor With Starting /Dual Capacitors

With capacitor start or two capacitors
Frame size:H71 - H132
Rated power range: 2pole 0.18kw - 3.7kw,
4pole 0.12kw - 5.5kw
Housing material : aluminum (plastic terminal box)
Protection Class: IP54/55
Insulation Class: ClassB/F
Cooling Method: IC411
Availability:
Quantity:
Inquire Add to Basket

  • YC/YCL series

  • iNERGY

  • 8501

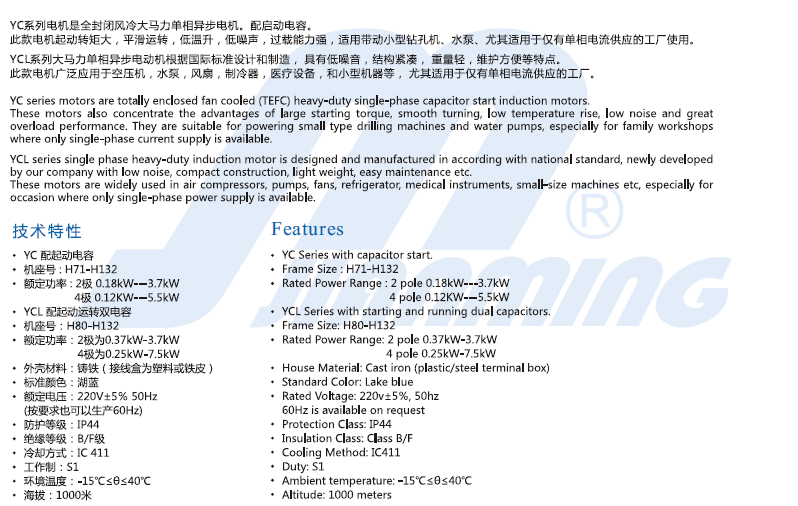

yc ycl general info

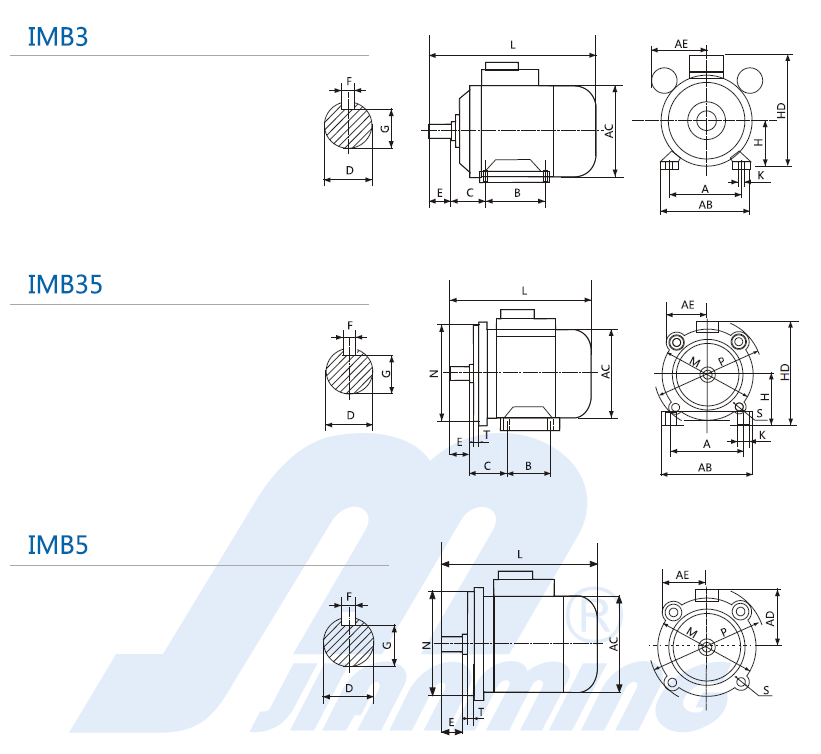

yc ycl dimension

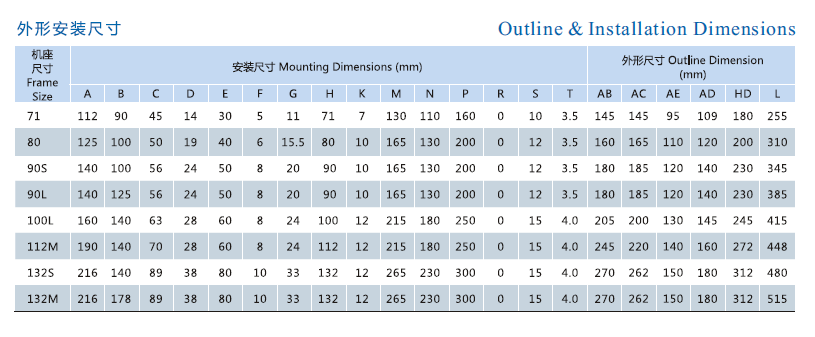

yc ycl dimension 1

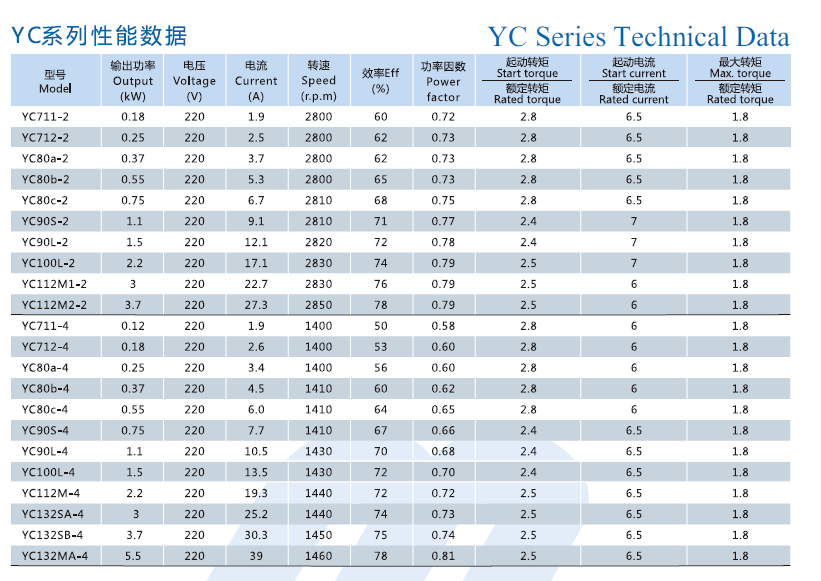

yc technical data

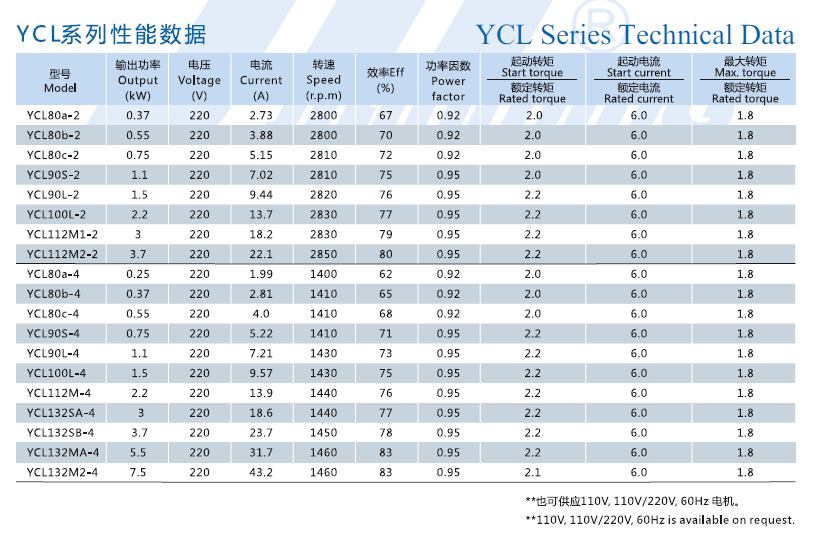

ycl technical data
