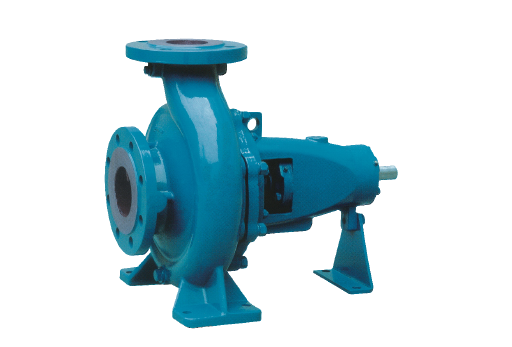

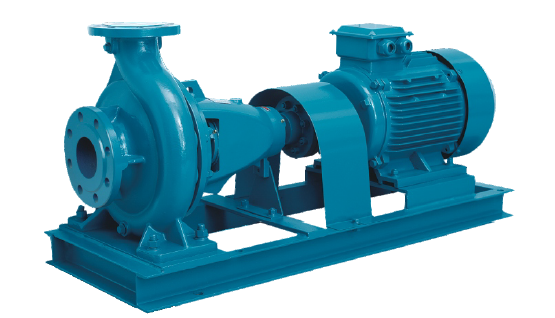

XA Series End Suction Centrifugal Pump

DESCRIPTION & FEATURES

XA series end suction centrifugal pumps are designed

 complying to BS EN733/DIN24255 standard. This series

 of pumps have great advantages interchangeable parts,

high quality and low cost.

APPLICATIONS

Heating, Ventilation and Air-Conditioning

 Fire Protection and Fire Fighting

Liquid Circulation

Irrigation

Cooling

Plants

Mines

MATERIAL CODE

C: Cast Iron             Bearing Frame Code

Q Ductile Iron         H:Bearing frame for double-row bearing

B: Bronze                G: Bigger shaft and bearing frame

 S: ASTM 420          Default: Standard

45: ASTM 1045       Seal Type

S304: ASTM 304      M: Mechanical Seal

S316: ASTM 316      P: Gland Packing
