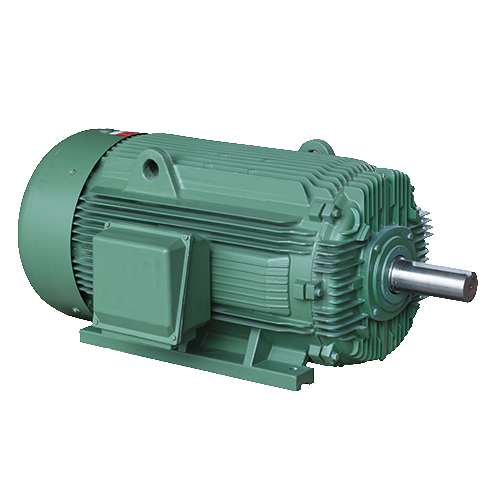

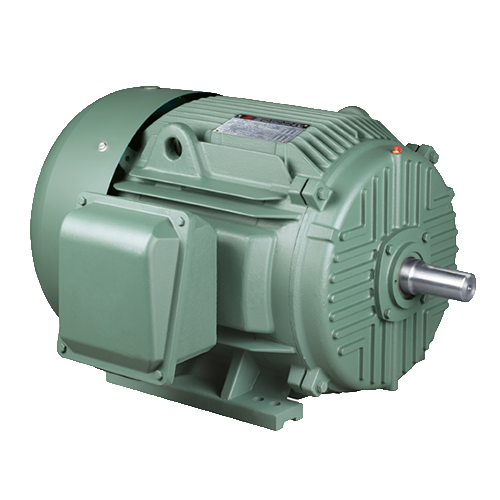

T Series Nema Standard 3-Phase Induction Motors Cast Iron Case (premium)

Efficiency: NEMA premium
AC 3phase 60hz
NEMA design B (design A is available)
Power: 1-200hp
Totally enclosed fan cooled
Service Factor: 1.15
Class B, Class F insulation with Phenolic Alkyd
VIP varnished with double times.
Oversize Conduit Box, Rotable in 90 degree
Heavy duty Constuction.
143T-447T shaft: 1045 carton steel
449T-586/7T (UZ) shaft : Alloy Steel and tempering treatment
F1 mounting （F2 is available）
Availability:
Quantity:
Inquire Add to Basket

  • T, JM,JP series

  • iNERGY

  • 3501

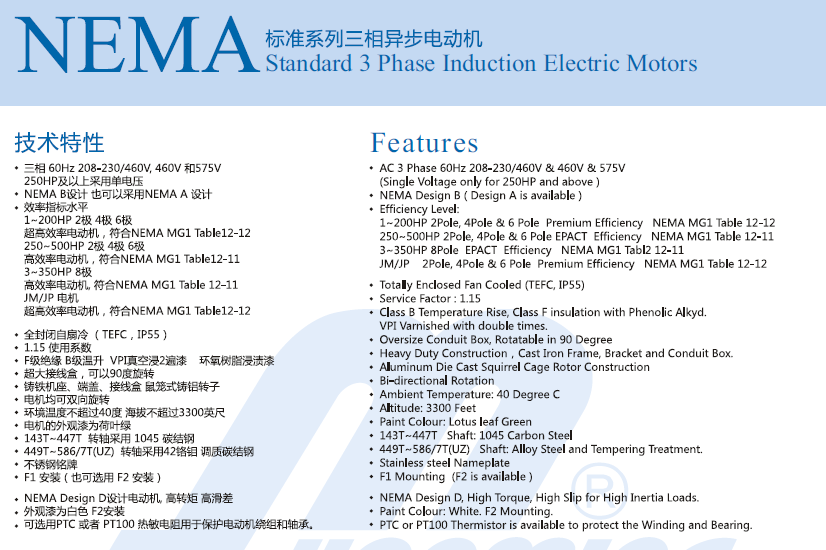

nema general info

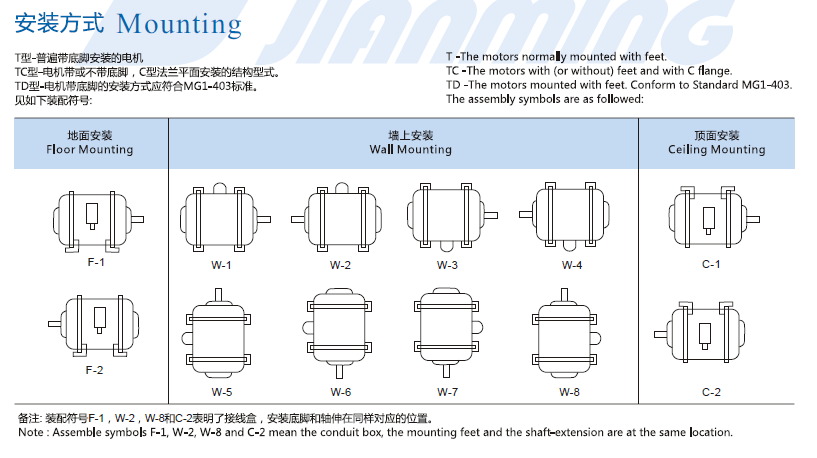

nema dimension

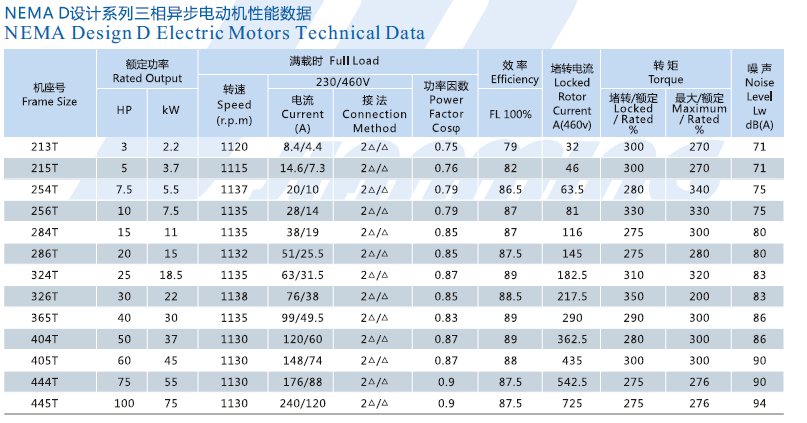

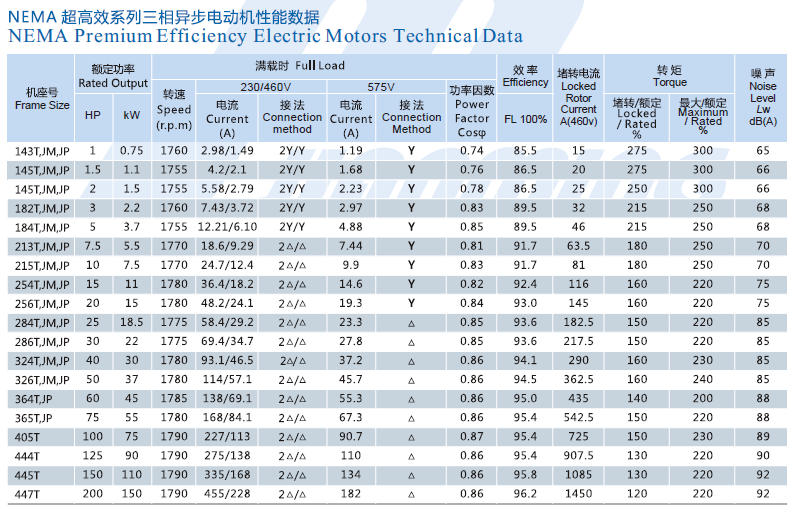

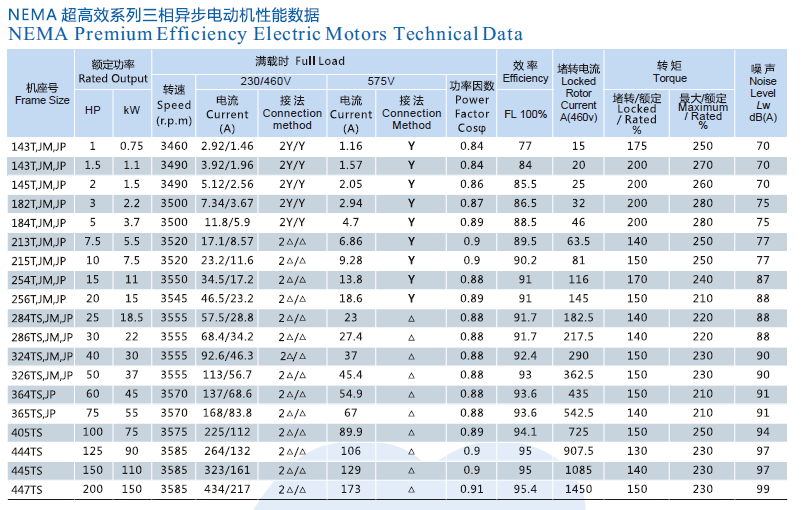

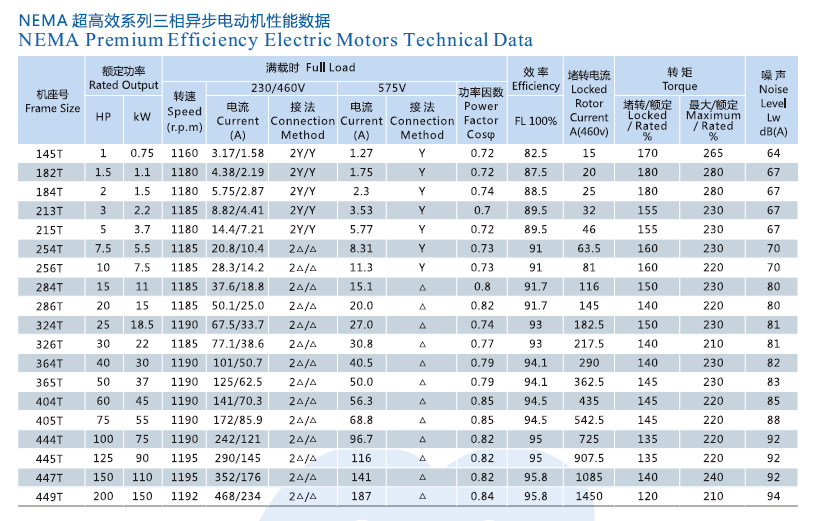

nema data1nema data2nema data3nema data4
