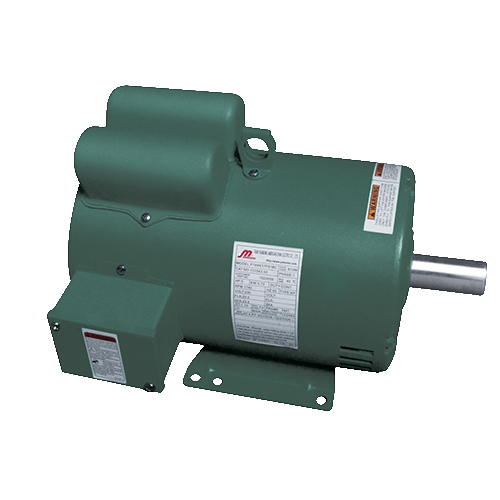

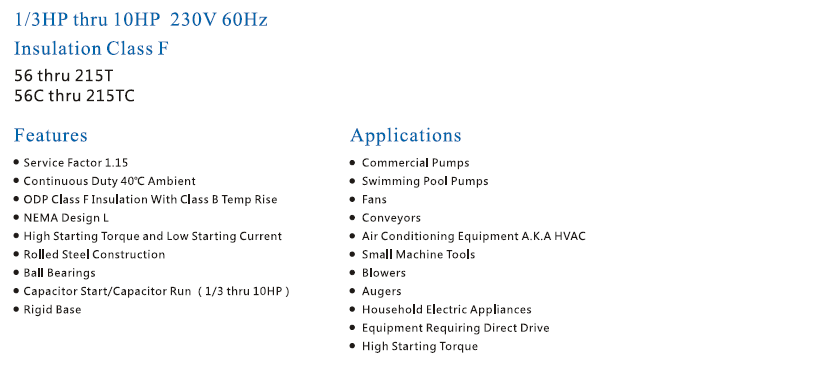

Single Phase Rolled Steel ODP Motors
56 thru 215T
56C thru 215TC
Service Factor 1.15
Countinuous Duty 40degree ambient
ODP class F insulation with class B temp Rise
NEMA design L
High starting torque and Low Starting Current
Rolled Steel Construction
Ball Bearing

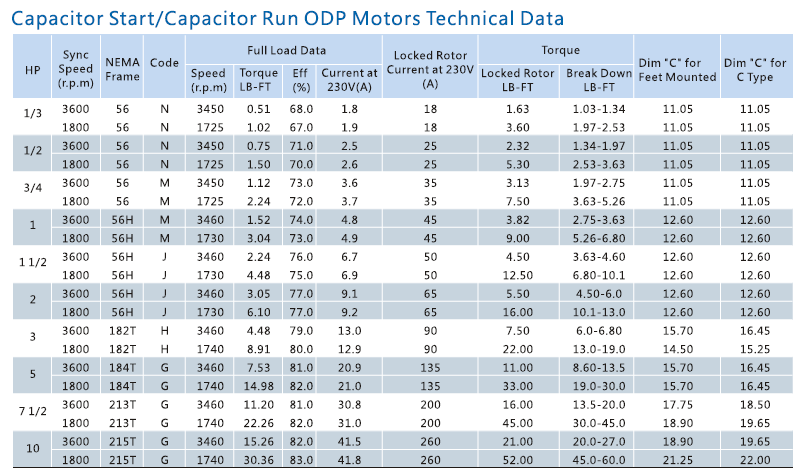

Capacitor Start/Capacitor Run(1/3 thru 10hp)
Rigid Base
