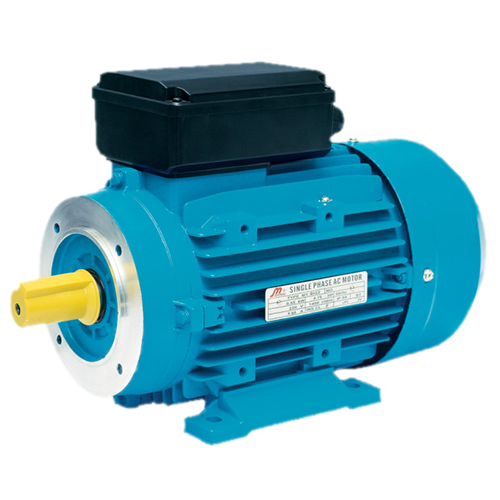

MY Series Single-phase Asynchronous Aluminium Housing Motor With Running Capacitor

With running capacitor
Frame size:H63 - H100
Rated power range: 2pole 0.18kw - 2.2kw,
4pole 0.12kw - 2.2kw
Housing material : aluminum (plastic terminal box)
Protection Class: IP54/55
Insulation Class: ClassB/F
Cooling Method: IC411
Availability:
Quantity:
Inquire Add to Basket

  • MY series

  • iNERGY

  • 8501

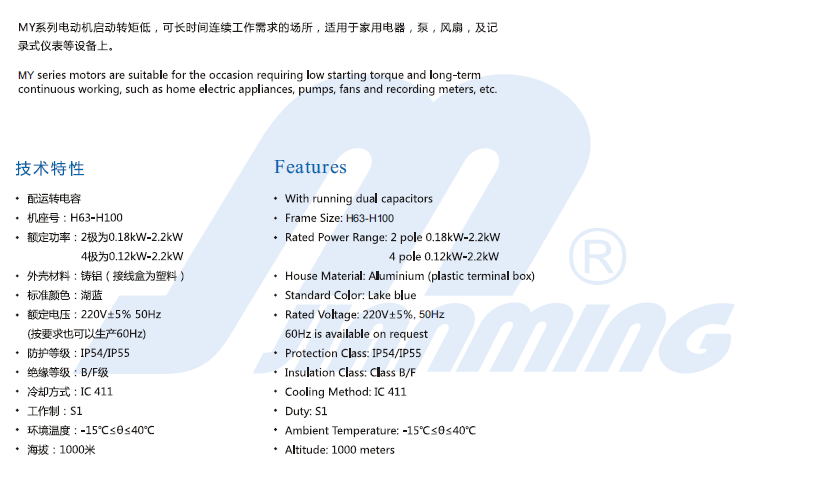

my general info

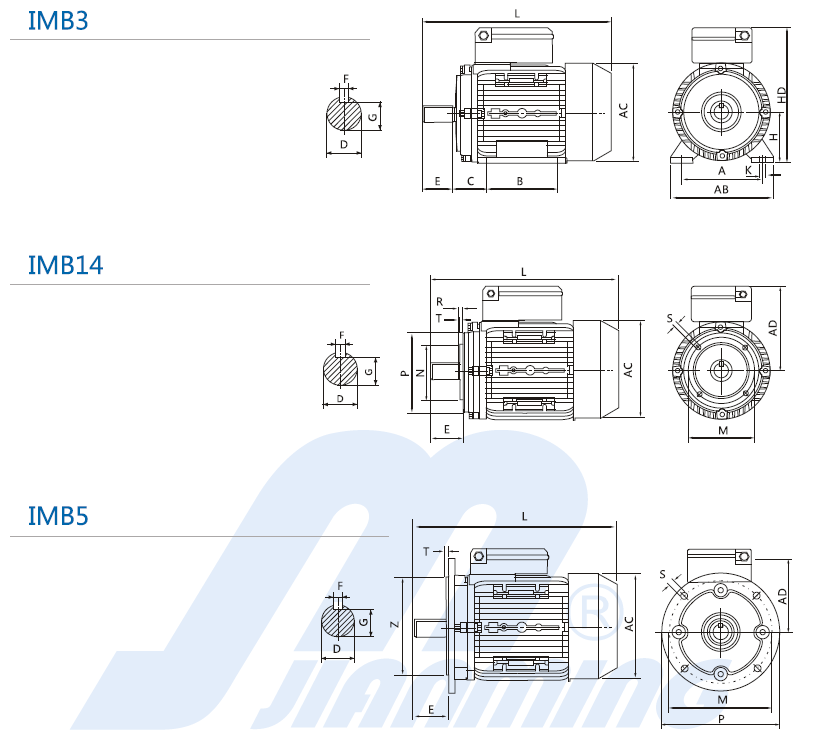

my dimension

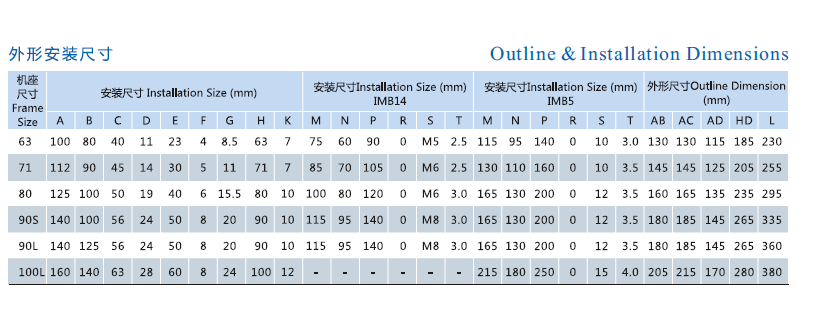

my dimension 1

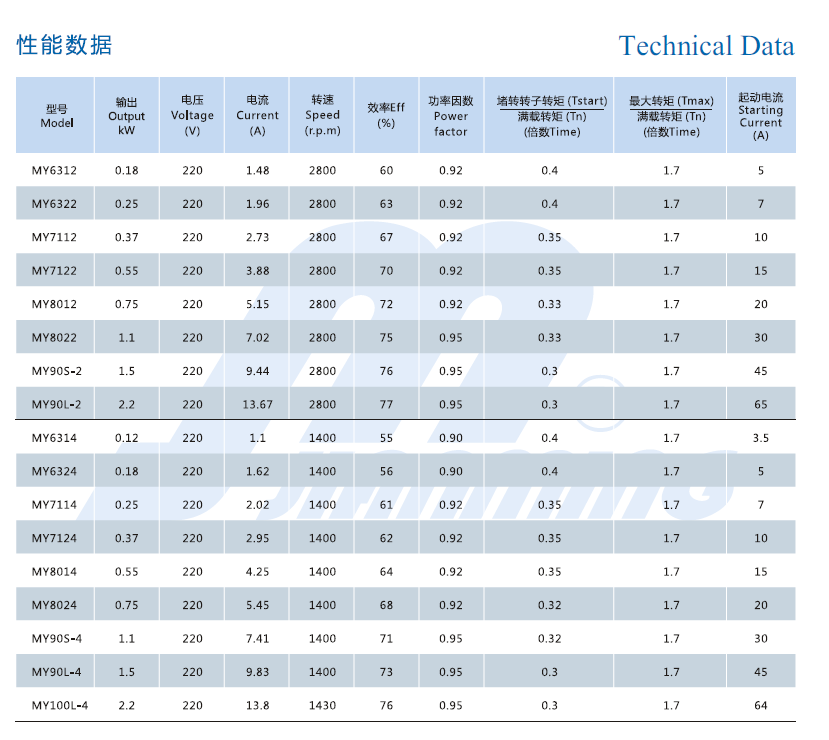

my technical data
