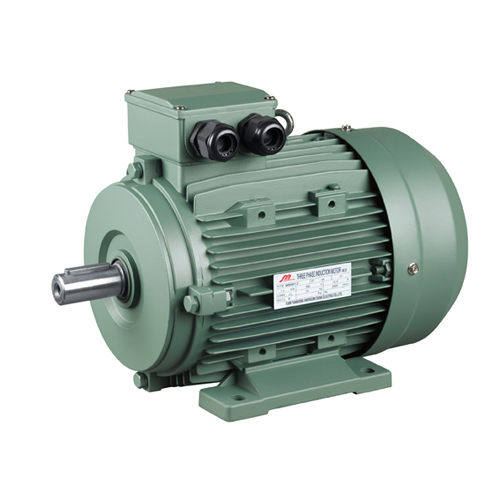

MS Series 3-Phase Induction Motors Aluminum Case (IE2)

Frame size Range: H56-H160
Rate Power Range: 0.06KW - 18.5KW(50hz)
Housing Material:Aluminum
Standard Mounting construction: IEC60034-7
Protect Enclosed Class: IP55(IEC60034-5)
Cooling Method: IC411 (IEC60034-6)
Availability:
Quantity:
Inquire Add to Basket

  • MS IE2

  • iNERGY

  • 3501

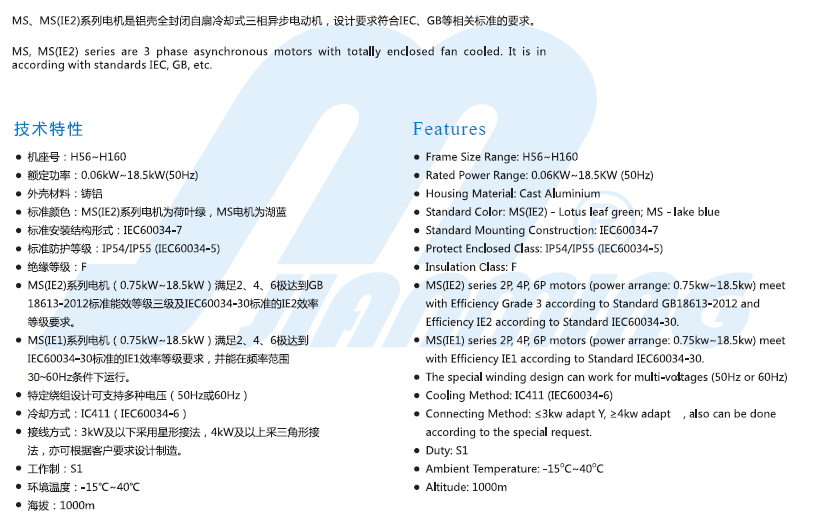

MS general information

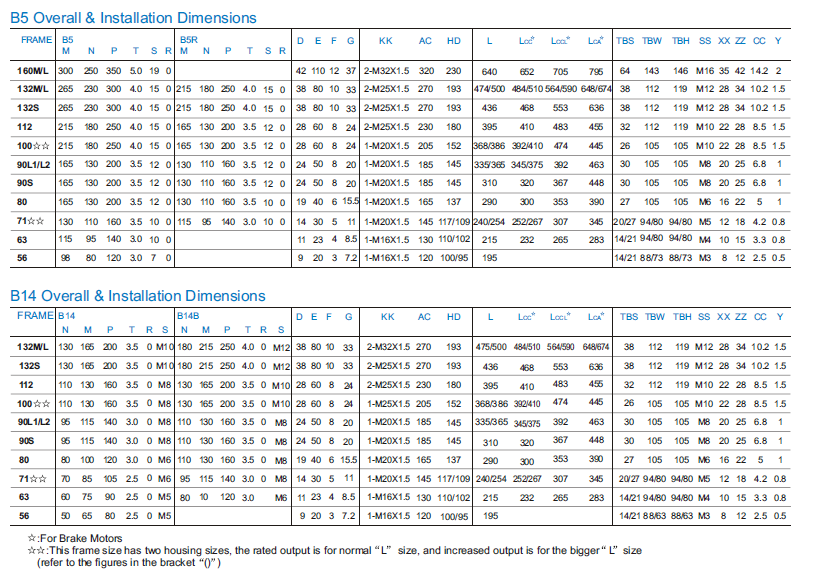

MS install dimension 1

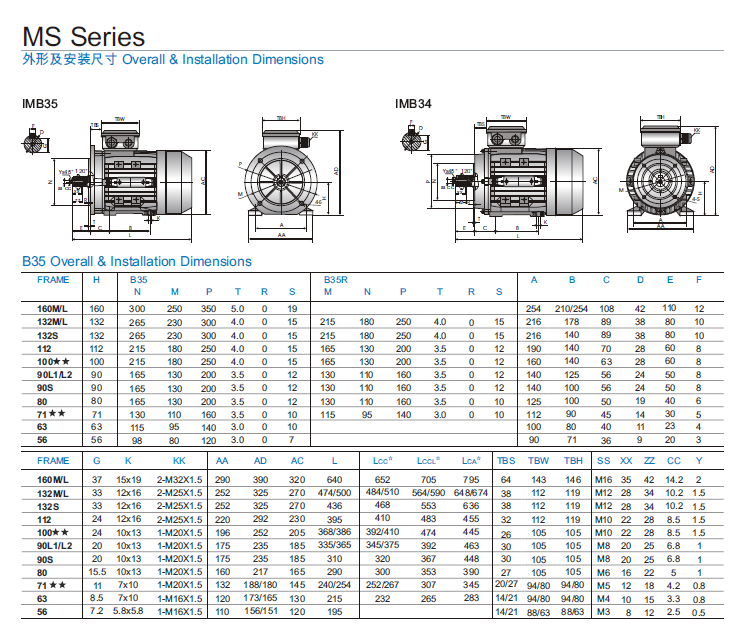

MS install dimension 2

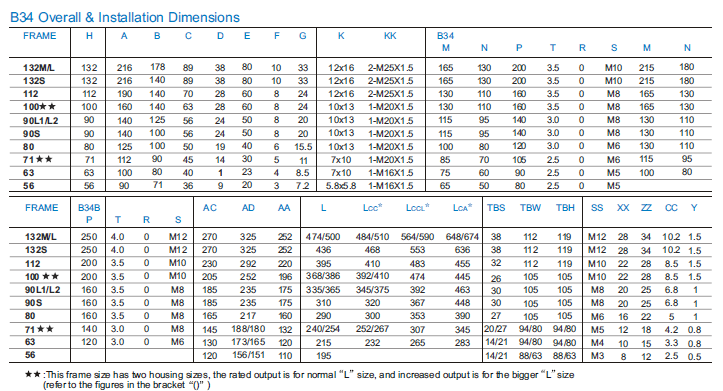

MS install dimension 3

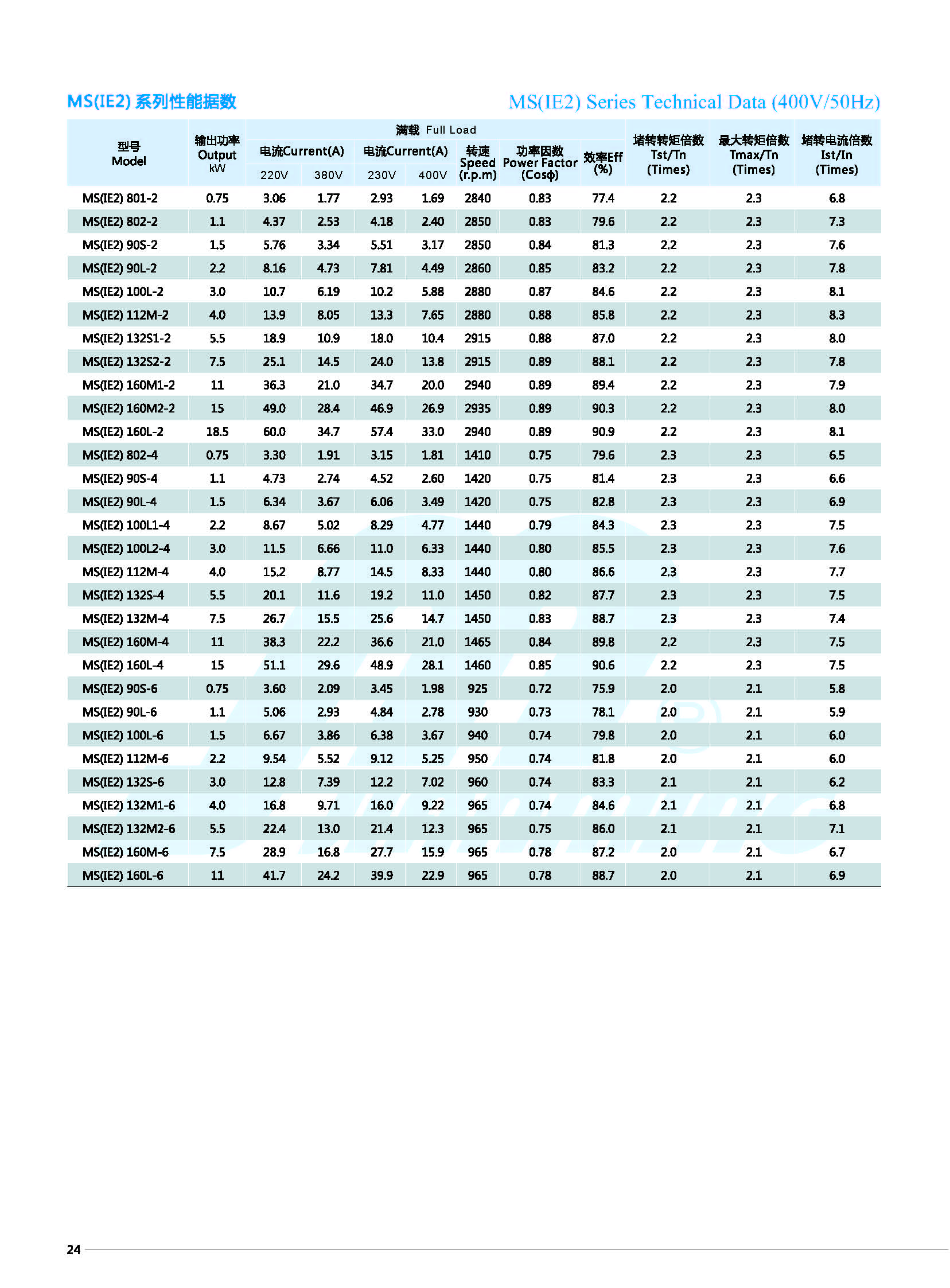

MS SERIES_页面_6
