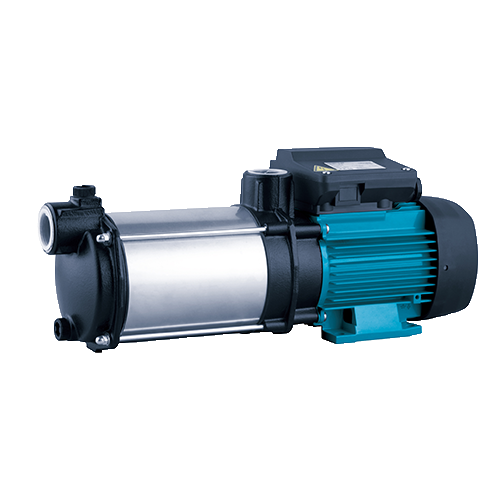

MHEP Series Self-priming Multistage Pump

OPERATING CONDITIONS

 Thin，clean，non-flammable and non-exposlve liquid containing no solid granules and fiber.

Liquid temperature

Nomal temperature type; -15C-+70℃

hot temperature type; -15C~120℃

 Electric motor

Full-enclosed   air-blast

two-pole sandard motor

Insulation: Class Class F

Protection: IP55

Standard voltage,50HZ：

1*220-230/240v

3*220-240/346-380v

3*220-240/380-415v

3*380-415V

Ambient temperature:up to 40℃

Altitude:up to 1000m

Materials

Pump body and impellers in AISI304 stainless steel.

Motor shaft in AISI420 stainless steel

Diffusers in technopolymer.

Suctrion and discharge mountings in cast iron.

Mechanical seal in graphite and alumine.

Gaskets in EPDM and NBR.

Motor casing alunminium
