OPERATING CONDITIONS

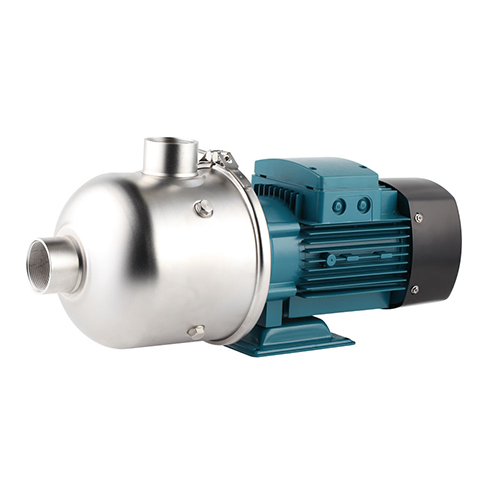

Self-Priming Multistage Pumps are able to develop high pressure
and a high water lift with a comparatively lower power consumption.
Universal pump for civil and industrial purposes, for high pressure
system and for irrigation in agriculture and sports fittings.
OPERATING CONDITIONS
l Maximum suction :9m
l Maximum Liquid temperature: 110℃
l Maximum ambient temperature :+ 45℃
PUMP
l PUMP BODY: stainless steel
l IMPELLER: Stainless steel
l MECHANICAL SEAL SETS:
Ceramic, graphite and rubber
MOTOR
l Bulit-in thermal protector for
the single phase motor
l INSULATION: Class B/F
l PROTECTION: IP44/5
OPERATING CONDITIONS
Self-Priming Multistage Pumps are able to develop high pressure
and a high water lift with a comparatively lower power consumption.
Universal pump for civil and industrial purposes, for high pressure
system and for irrigation in agriculture and sports fittings.
OPERATING CONDITIONS
l Maximum suction :9m
l Maximum Liquid temperature: 110℃
l Maximum ambient temperature :+ 45℃
PUMP
l PUMP BODY: stainless steel
l IMPELLER: Stainless steel
l MECHANICAL SEAL SETS:
Ceramic, graphite and rubber
MOTOR
l Bulit-in thermal protector for
the single phase motor
l INSULATION: Class B/F
l PROTECTION: IP44/5
