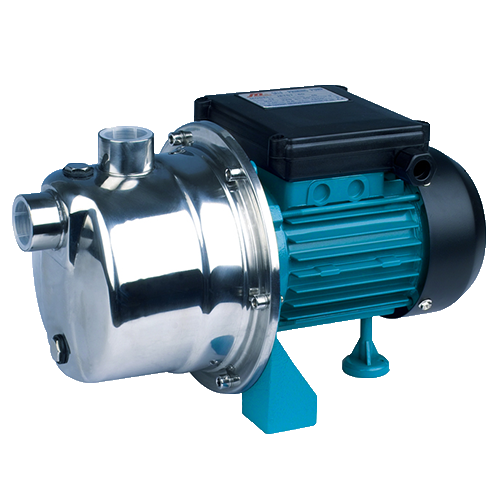

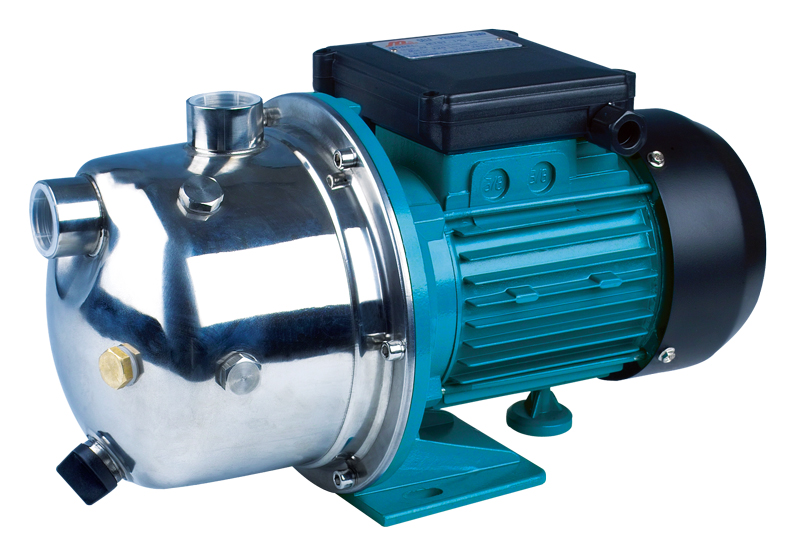

JET-ST
OEM
84137099
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
PUMP
l Pump Body:Stainless Steel
l Impeller: Brass/Techno-polymer(P.P.O)/Stainless Steel
l Diffuser: Techno-polymer(P.P.O)
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Single Phase l Insulation: Class B / Class F
l Heavy Duty Continuous Work l Protection: IP44/IP54
l Motor Housing: Aluminum l Cooling: External Ventilation
l Shaft: Stainless Steel
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
PUMP
l Pump Body:Stainless Steel
l Impeller: Brass/Techno-polymer(P.P.O)/Stainless Steel
l Diffuser: Techno-polymer(P.P.O)
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Single Phase l Insulation: Class B / Class F
l Heavy Duty Continuous Work l Protection: IP44/IP54
l Motor Housing: Aluminum l Cooling: External Ventilation
l Shaft: Stainless Steel
