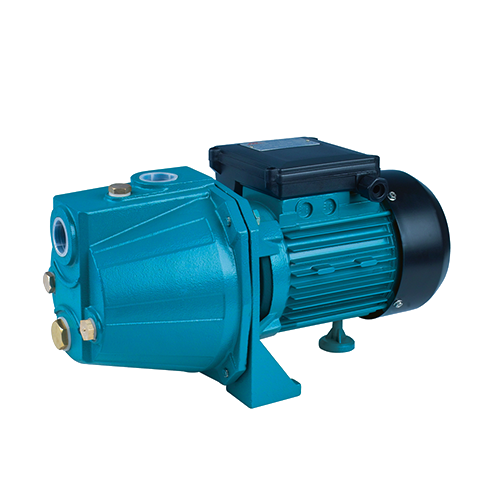

JET-S
OEM
84137099
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
PUMP
l Pump Body:Cast Iron
l Impeller:Brass/Techno-polymer(P.P.O )
l Mechanical Seal:Carbon/ Ceramic /Stainless Steel
l Diffuser:Techno-polymer(P.P.O )
MOTOR
l single phase l Insulation: Class B / Class F
l Heavy Duty Continunons Work l Protection: IP44/IP54
l Motor Housing: Aluminum l Cooling: External Ventilation
l Shaft:Carbon Steel/Stainless Steel
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
PUMP
l Pump Body:Cast Iron
l Impeller:Brass/Techno-polymer(P.P.O )
l Mechanical Seal:Carbon/ Ceramic /Stainless Steel
l Diffuser:Techno-polymer(P.P.O )
MOTOR
l single phase l Insulation: Class B / Class F
l Heavy Duty Continunons Work l Protection: IP44/IP54
l Motor Housing: Aluminum l Cooling: External Ventilation
l Shaft:Carbon Steel/Stainless Steel
