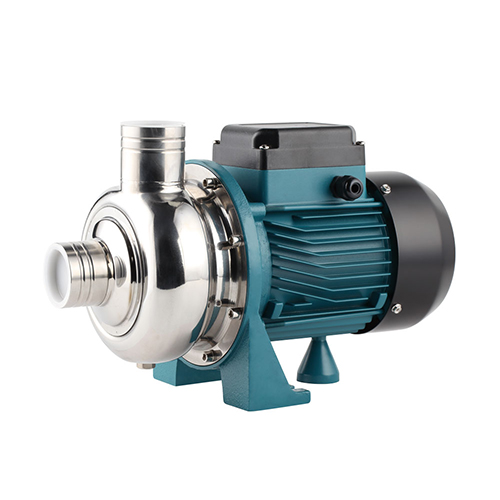

BB/BK
INERGY
84137099
OPERATING CONDITIONS
l Liquid temperature: -15℃~+80℃
l Ambient temperature up to 40℃
l Continuous duty
l Ph: 6.5 to 8.5
PUMP
l Pump Body: SUS304
l Impeller:SUS304
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Heavy Duty Continuous Work
l Motor Housing: Aluminum l Shaft: AISI304
l Insulation: Class B / Class F l Protection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l Stainless steel pump body and impeller
l High efficiency large flow
l Compact structure
OPERATING CONDITIONS
l Liquid temperature: -15℃~+80℃
l Ambient temperature up to 40℃
l Continuous duty
l Ph: 6.5 to 8.5
PUMP
l Pump Body: SUS304
l Impeller:SUS304
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Heavy Duty Continuous Work
l Motor Housing: Aluminum l Shaft: AISI304
l Insulation: Class B / Class F l Protection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l Stainless steel pump body and impeller
l High efficiency large flow
l Compact structure
