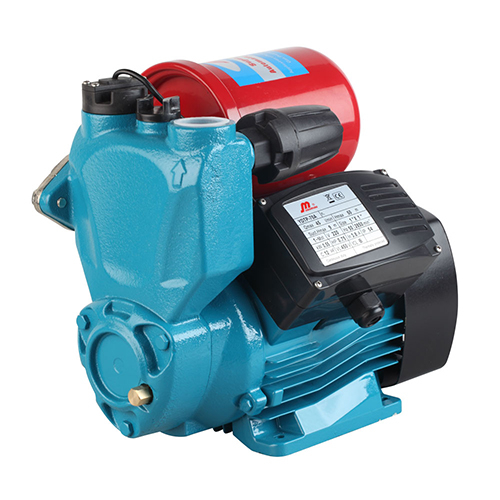

YDTP
INERGY
84137099
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Hot water type up to 100℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
l Ph: 6.5 to 8.5
PUMP
l Pump Body: Cast Iron
l Impeller: Brass
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Single Phase lHeavy Duty Continuous Work
l Motor Housing: Aluminum lShaft: AISI304
l Insulation: Class B / Class F lProtection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l Pressrue and flow switch control automatically
l Pump bodyinsert of stainless sheet 304
l Intelligent control:Pump can supply stabilized waterflow by automatically running. Throughthe water flow and water pressure data collectedby flow switch and pressure switch, electronicunit control the pump running/stop, solve thefrequently starting problems under low water flow, and completely inhibit frequently starting if water flows lower than 0.3m3/h.
l Time delay start: 3 seconds delay on startup toprevent electric transient surge
l DryRun protection:Pump shut down if no water past pump inlet after running 6 minutes,when there is water flow pastpump inlet, pump restart.
l Scale prevention: Pump will automatically run 10 seconds for scale prevention once per 3 days among outage period.
l Electronic switch: Long service life, and eliminate the "da da“noise caused by mechanical pressure switch
l Double check valve,make reliable life time
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Hot water type up to 100℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
l Ph: 6.5 to 8.5
PUMP
l Pump Body: Cast Iron
l Impeller: Brass
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Single Phase lHeavy Duty Continuous Work
l Motor Housing: Aluminum lShaft: AISI304
l Insulation: Class B / Class F lProtection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l Pressrue and flow switch control automatically
l Pump bodyinsert of stainless sheet 304
l Intelligent control:Pump can supply stabilized waterflow by automatically running. Throughthe water flow and water pressure data collectedby flow switch and pressure switch, electronicunit control the pump running/stop, solve thefrequently starting problems under low water flow, and completely inhibit frequently starting if water flows lower than 0.3m3/h.
l Time delay start: 3 seconds delay on startup toprevent electric transient surge
l DryRun protection:Pump shut down if no water past pump inlet after running 6 minutes,when there is water flow pastpump inlet, pump restart.
l Scale prevention: Pump will automatically run 10 seconds for scale prevention once per 3 days among outage period.
l Electronic switch: Long service life, and eliminate the "da da“noise caused by mechanical pressure switch
l Double check valve,make reliable life time
