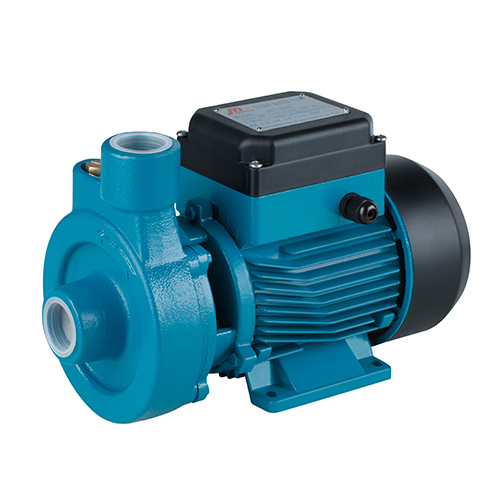

YDK
INERGY
84137099
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
l Ph: 6.5 to 8.5
PUMP
l Pump Body: Cast Iron
l Impeller: Brass
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
l Front bracket: Cast Iron
MOTOR
l Single Phase l Heavy Duty Continuous Work
l Motor Housing: Aluminum l Shaft: AISI304
l Insulation: Class B / Class F l Protection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l Semi open impeller
l Suitable for clean or slightly dirty water
l Compact structure,easy to install
l Designed friendly for irrigation system
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
l Ph: 6.5 to 8.5
PUMP
l Pump Body: Cast Iron
l Impeller: Brass
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
l Front bracket: Cast Iron
MOTOR
l Single Phase l Heavy Duty Continuous Work
l Motor Housing: Aluminum l Shaft: AISI304
l Insulation: Class B / Class F l Protection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l Semi open impeller
l Suitable for clean or slightly dirty water
l Compact structure,easy to install
l Designed friendly for irrigation system
