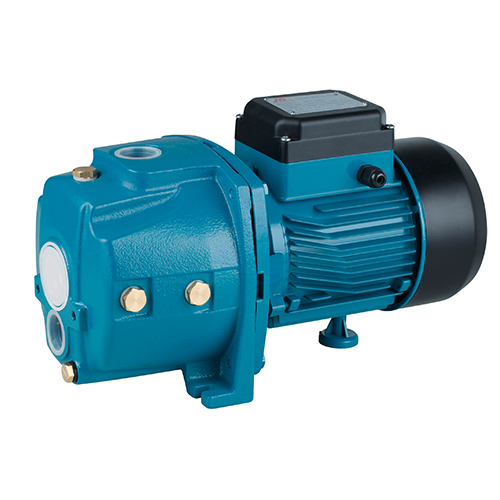

YDJDW
INERGY
84137099
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
l PH:6.5 to 8.5
PUMP
l Pump Body: Cast iron
l Impeller: Brass
l Diffuser: Techno-polymer (P.P.O)
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Single Phase lHeavy Duty Continuous Work
l Motor Housing: Aluminum lShaft: AISI304
l Insulation: Class B / Class F lProtection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l With special ejector sets,for 2inch well
l Suction up to 25meters
l Low noise
OPERATING CONDITIONS
l Liquid temperature up to 60℃
l Ambient temperature up to 40℃
l Total Suction lift up to 9m
l Continuous duty
l PH:6.5 to 8.5
PUMP
l Pump Body: Cast iron
l Impeller: Brass
l Diffuser: Techno-polymer (P.P.O)
l Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
l Single Phase lHeavy Duty Continuous Work
l Motor Housing: Aluminum lShaft: AISI304
l Insulation: Class B / Class F lProtection: IPX4
l Cooling: External Ventilation
ADVANTAGES & FEATURES
l With special ejector sets,for 2inch well
l Suction up to 25meters
l Low noise
